PTFE EVAPORATION DISHES

Our PTFE / Teflon Evaporation Dishes are used to aid in the coating process for silicon disks (wafers).

Part NoProduct NameOustide Dimensions (Handle)Inside Dimensions
SM2.3ED12″ Evaporation Dish w / Spout7.40 in x 6.00 in x .506.00 in x 4 in

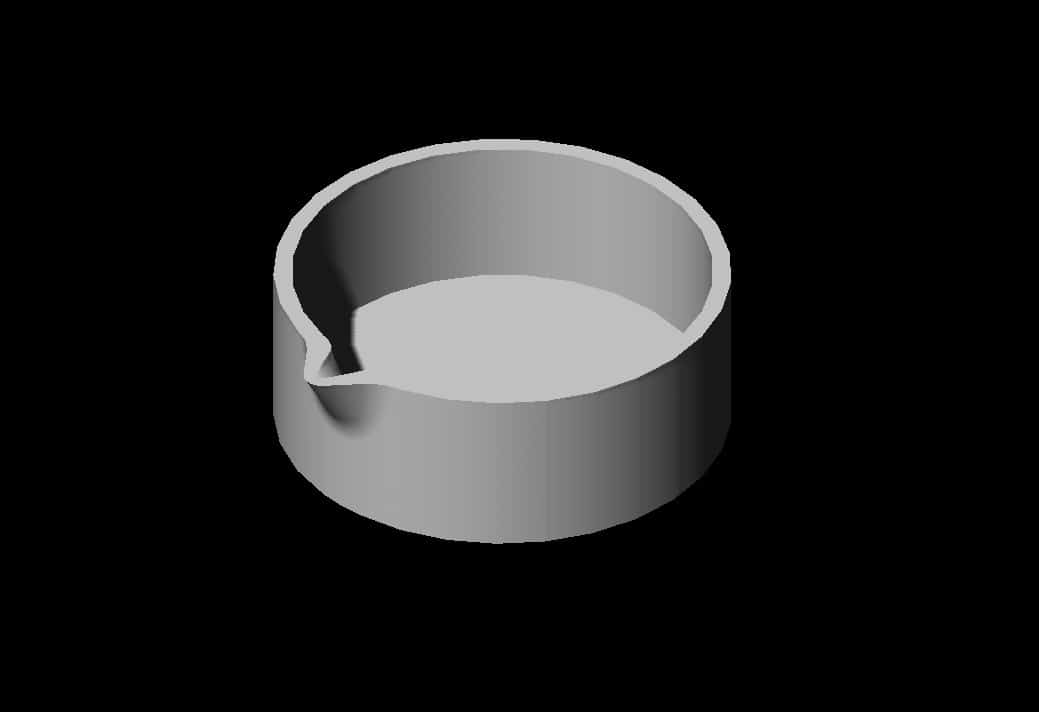

SM3ED1 3” Evaporation Dish with Spout 3.15 in x 3.45 in x 1.18 in2.90 in x 1.06 in
SM5ED15" PTFE Beaker/ Evaporation Dish with Spout6.04 in x 4 in x 3.75 in
SM5ED25" PTFE Evaporation Dish w/ Spout6.04 in x 2 in x 1.75 in
SM6ED1 6" Evaporation Dish w/Spout6.94 in x 2.00 in x .24 in2.90 in x 1.06 in
SM6ED26" PTFE Evaporation Dish, 4 " Deep w/ Spout6.95 in x 4.25in x 4 in

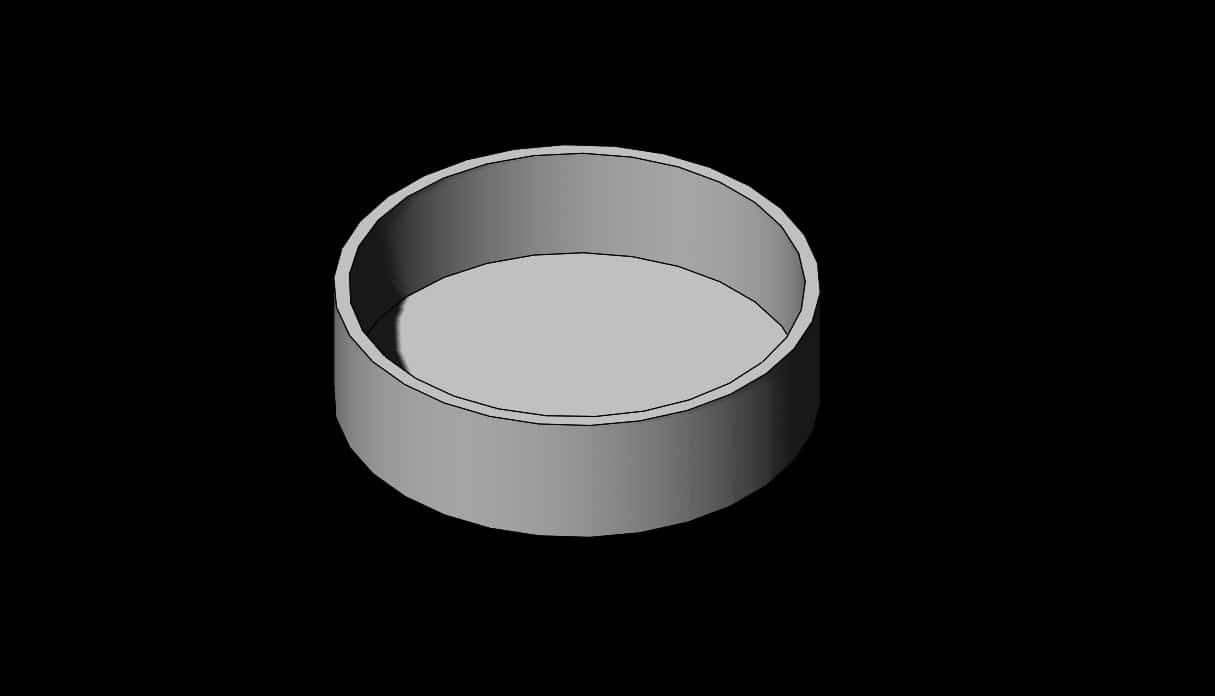

SM8ED1 8” Evaporation Dish without Spout8.00 in x 2.25 in7.5 in x 2 in

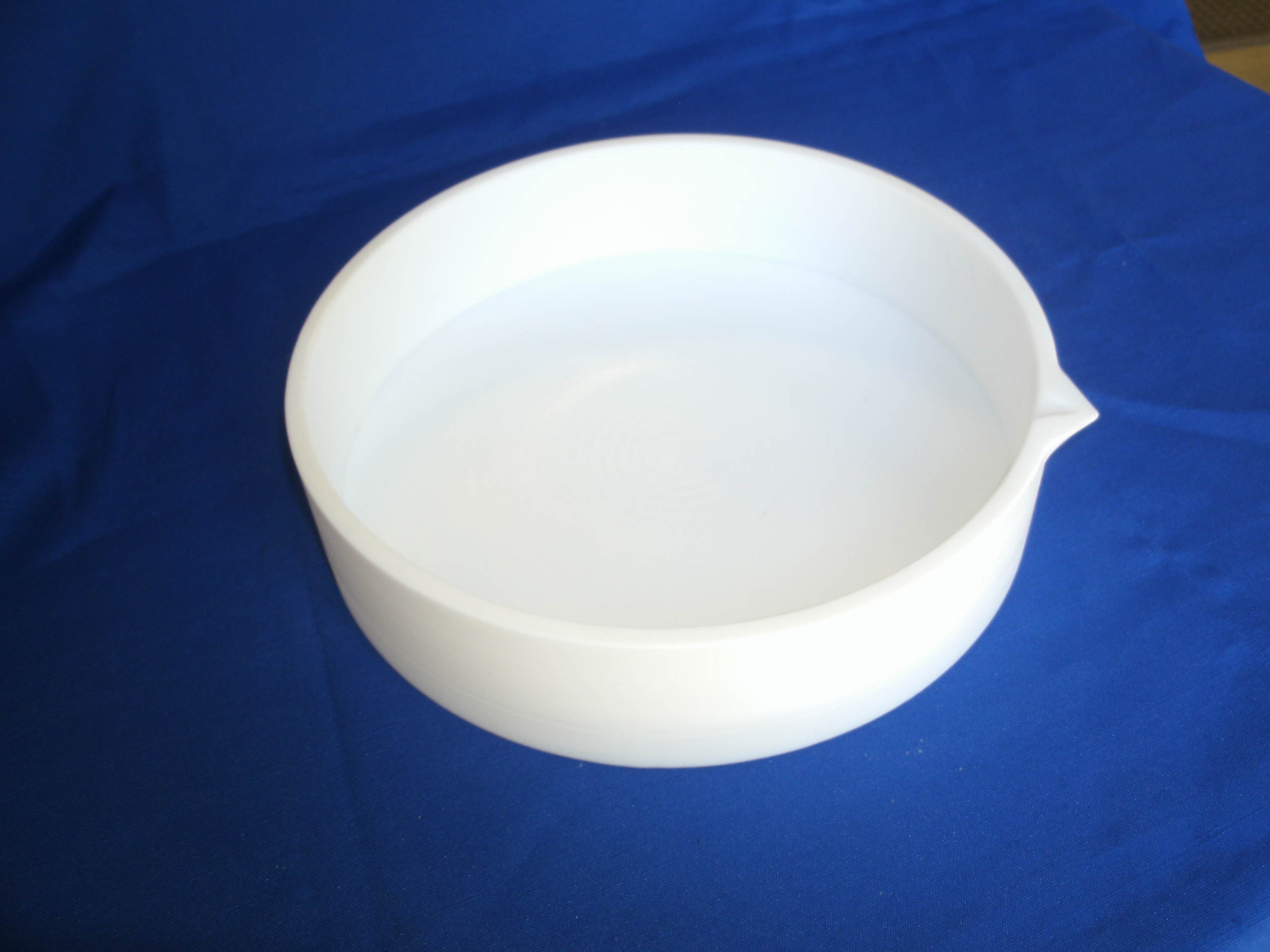

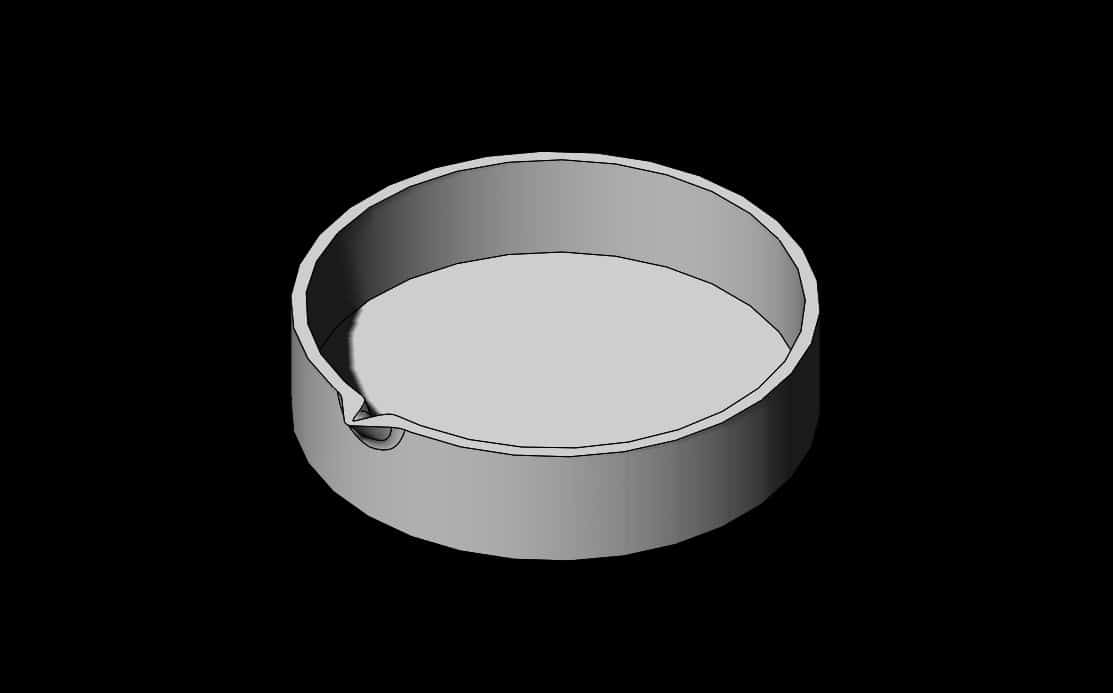

SM8ED2 8” Evaporation Dish with Spout 8.31 in x 3.79 in x 2.00 in7.84 in x 1.77 in
SM8ED38" PTFE Evaporation Dish w/ NO SPOUT, 3" Deep8.50 in x 3.25 in x 3 in LID 9 in x 1.00 in
SM9ED1 9” Evaporation Dish without Spout 9.00 in X 5.00 in 7.87 in x 3.94 in
SM9ED2 9" Evaporation Dish w/Spout9.87 in x 3 x .248.93 in x 2.77 in

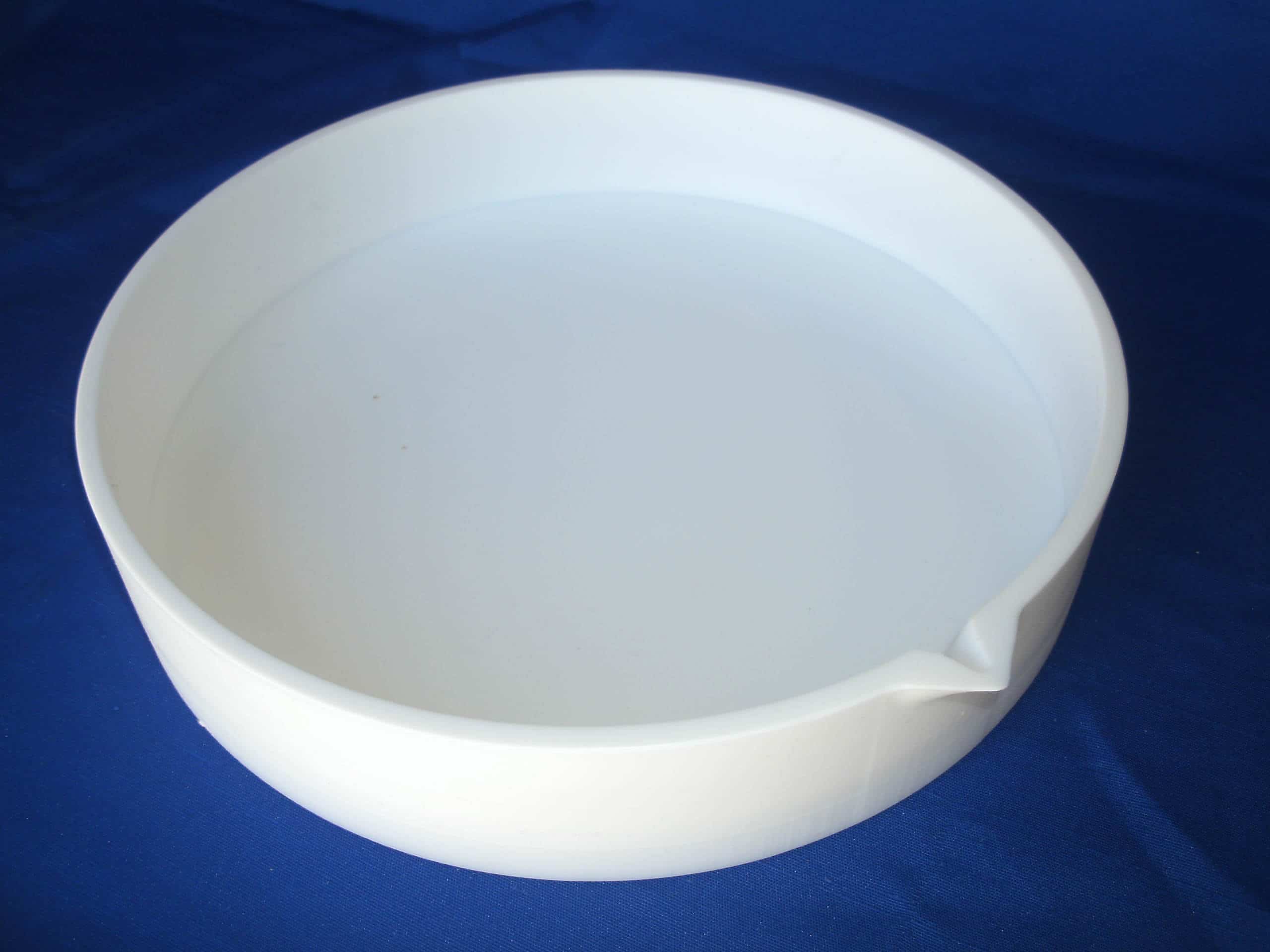

SM10ED1 10” Evaporation Dish with Spout 10.31 in X 10.79 in X 2.00 in 9.84 in x 1.77 in
SM10ED2PTFE Evaporation Dish w/ Spout, 10.8" I.D.11.86 in x 2 in x .177 in
SM10ED4
 10″ Evaporation Dish w/Spout10.73 in x 4 x .25 in10 in x 3.75 in
SM13.625ED1 14.13" OD/13.63" ID 2"/.177" ID Deep Evaporation Dish w /Spout 14.13 in x 2.00 in w/Spout13.63 in x 2.00 in
